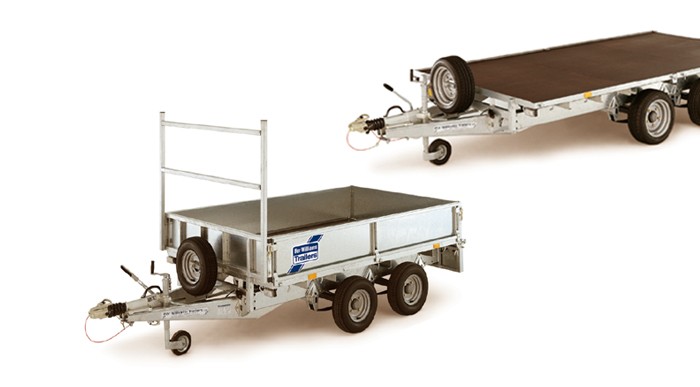

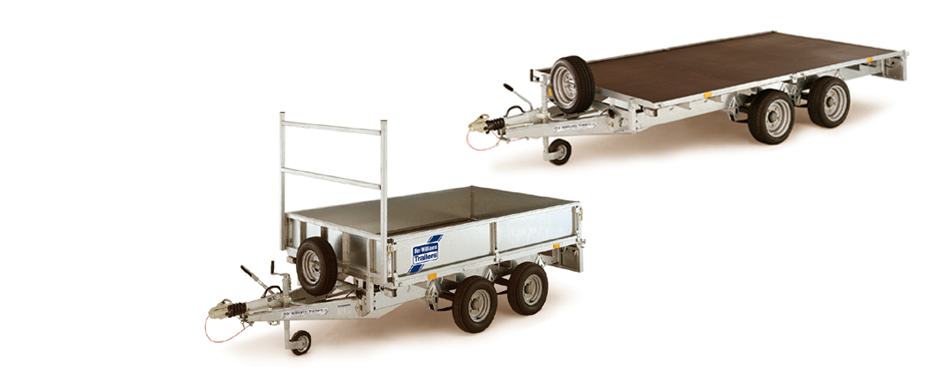

Ifor Williams Flatbed Trailers LT & LM Models
The flatbed range is offered in width options ranging from 1.52m/5’ to 2.29m/7’6″ and length options from 2.44m/8’ to 5.49m/18’. The maximum gross weight for the LT model is 2000kg, whilst the heavier LM models offer between 2700kg and 3500kg.
From the smallest LT85 to the largest LM187, all flatbed models are built around a welded steel, galvanized chassis fitted with bolt-on tapered drawbars and the Ifor Williams beam axle and leaf sprung suspension.
The flatbed trailer range is normally supplied with twin axles. Tri-axle options are available on our LM6 series models in lengths over 12’.
With the addition of a winch, rear propstands and either loading skids or the full-width ramp (1.83m/6’ in length), the versatile flatbed can be used to carry loads, such as small plant, ride-on mowers, mixers, shredders, rollers and a multitude of mobile plant equipment.
Key Features
Tough, adaptable and easy to maintain, all models are fitted with a tough resin-coated plywood platform, spare wheel and jockey wheel as standard. An option of aluminium treadplate covering is available, along with recessed lashing rings. Trailers can be further enhanced with accessories such as a headboard, ladder rack, dropsides or meshside extensions. Various options and accessories are available for your trailer. Some may need to be ordered with your trailer as a factory fit item, while others can be purchased at a later date. Please check with your distributor before ordering. Click on Accessories for further details of available accessories.
Click Here to Download a Brochure Click Here for Accessories
Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
---|---|---|---|---|---|---|---|
LT85 | 145R10C | 2000kg | 450kg | 2.44m/8′ | 1.52m/5′ | 3.80m | 1.60m |
LT105 | 145R10C | 2000kg | 510kg | 3.01m/9’9″ | 1.68m/5’5″ | 4.35m | 1.75m |
LT125 | 145R10C | 2000kg | 565kg | 3.62m/11’9″ | 1.68m/5’5″ | 5.00m | 1.75m |
LT106 | 145R10C | 2000kg | 555kg | 3.01m/9’9″ | 1.98m/6’5″ | 4.35m | 2.10m |
LT126 | 145R10C | 2000kg | 615kg | 3.62m/11’9″ | 1.98m/6’5″ | 5.00m | 2.10m |
LT146 | 145R10C | 2000kg | 660kg | 4.23m/13’9″ | 1.98m/6’5″ | 5.60m | 2.10m |
LM85 | 195/60R12C | 2700kg | 495kg | 2.44/8′ | 1.52m/5′ | 3.80m | 1.60m |
LM105 | 195/60R12C | 2700kg | 575kg | 3.01m/9’9″ | 1.68m/5’5″ | 4.35m | 1.75m |
LM125 | 195/60R12C | 2700kg | 620kg | 3.62m | 1.68m | 5.00m | 1.75m |
LM85 | 195/60R12C | 3500kg | 525kg | 2.44m/8′ | 1.52m/5′ | 3.80m | 1.60m |
LM105 | 195/60R12C | 3500kg | 605kg | 3.01m/9’9″ | 1.68m/5’5″ | 4.35m | 1.75m |
LM125 | 195/60R12C | 3500kg | 650KG | 3.62m/11’9″ | 1.68m/5’5″ | 5.00m | 1.75m |
LM106 | 195/60R12C | 3500kg | 620kg | 3.01m/9’9″ | 1.98m/6’5″ | 4.35m | 2.10m |
LM126 | 195/60R12C | 3500kg | 675kg | 3.62m/11’9″ | 1.98m/6’5″ | 5.00m | 2.10m |
LM146 | 195/60R12C | 3500kg | 735kg | 4.23m/13’9″ | 1.98m/6’5″ | 5.60m | 2.10m |
LM166 | 195/60R12C | 3500kg | 795kg | 4.77m/15’6″ | 1.98m/6’5″ | 6.20m | 2.10m |
LM186 | 195/60R12C | 3500kg | 855kg | 5.47m/17’9″ | 1.98m/6’5″ | 6.85m | 2.10m |
LM126T (Tri Axle) | 195/60R12C | 3500kg | 785kg | 3.62m/11’9″ | 1.98m/6’5″ | 5.00m | 2.10m |
LM146T (Tri Axle) | 195/60R12C | 3500kg | 845kg | 4.23m/13’9″ | 1.98m/6’5″ | 5.60m | 2.10m |
LM166T (Tri Axle) | 195/60R12C | 3500kg | 905kg | 4.77m/15’6″ | 1.98m/6’5″ | 6.20m | 2.10m |
Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
---|---|---|---|---|---|---|---|
LM186T (Tri Axle) | 195/60R12C | 3500kg | 965kg | 5.47m/17’9″ | 1.98m/6’5″ | 6.85m | 2.10m |
LM127 | 195/60R12C | 3500kg | 705kg | 3.62m/11’9″ | 2.25m/7’4″ | 5.00m | 2.30m |
LM147 | 195/60R12C | 3500kg | 775kg | 4.23m/13’9″ | 2.25m/7’4″ | 5.60m | 2.30m |
LM167 | 195/60R12C | 3500kg | 845kg | 4.77m/15’6″ | 2.25m/7’4″ | 6.20m | 2.30m |
LM187 | 195/60R12C | 3500kg | 915kg | 5.47m/17’9″ | 2.25m/7’4″ | 6.85m | 2.30m |
LM147T (Tri Axle) | 195/60R12C | 3500kg | 885kg | 4.23m/13’9″ | 2.25m/7’4″ | 5.60m | 2.30m |
LM167T (Tri Axle) | 195/60R12C | 3500kg | 955kg | 4.77m/15’6″ | 2.25m/7’4″ | 6.20m | 2.30m |
LM187T (Tri Axle) | 195/60R12C | 3500kg | 1025kg | 5.47m/17’9″ | 2.25m/7’4″ | 6.85m | 2.30m |
